Description

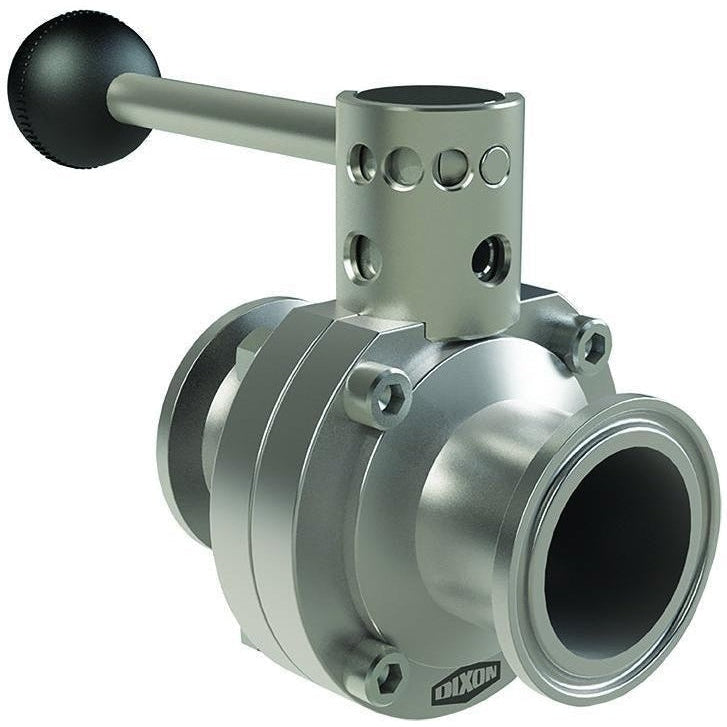

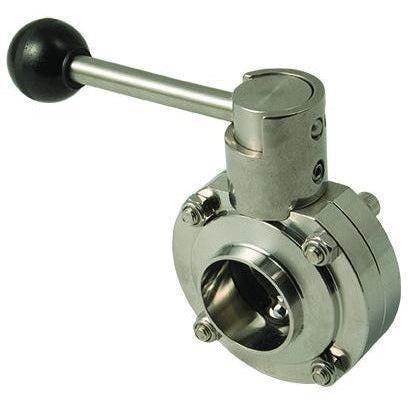

B5107 Series Butterfly Valve with Pull Handle – Quick and Efficient Flow Control
The B5107 Series Butterfly Valve with Pull Handle is engineered for precise and dependable flow regulation in sanitary piping systems, ideal for use in the food, beverage, biotech, and pharmaceutical sectors. Constructed from stainless steel, it offers exceptional durability and resistance to corrosion in challenging environments. The pull handle facilitates rapid on/off control, ensuring smooth operation.
Benefits:
- Facilitates bi-directional flow with low and medium viscosity fluids.
- Equipped with a pull handle for swift on/off flow management.
- Features stainless steel construction for enhanced durability and corrosion resistance.
- All wetted surfaces boast a sanitary finish for straightforward cleaning.
- Field-serviceable to extend operational lifespan.
- Complies with ASME A270 and 3A Sanitary Standards.
This butterfly valve supports bi-directional flow and is gentle on media, making it suitable for low to medium-viscosity fluids. Its low resistance to flow and self-draining design ensure efficient operation while maintaining sanitary conditions. All wetted surfaces are finished to <32Ra, and the valve is verified by ASME A270 and 3A Sanitary Standards.
Product Details:
- Break Torque: 20 in. lbs.
- Flow Coefficient: 7 CV
- Pressure Rating: Based on water media at 68°F (20°C)
- Catalog Page: DPL418 – 633
- Dimensions: Product Specs
Note:
- The pull handle is not assembled when shipped. For pre-assembled valves, please request assembly in the special instructions of your order.
This butterfly valve offers an efficient, hygienic solution for flow control in critical sanitary applications, ensuring reliable performance in various industrial environments.
